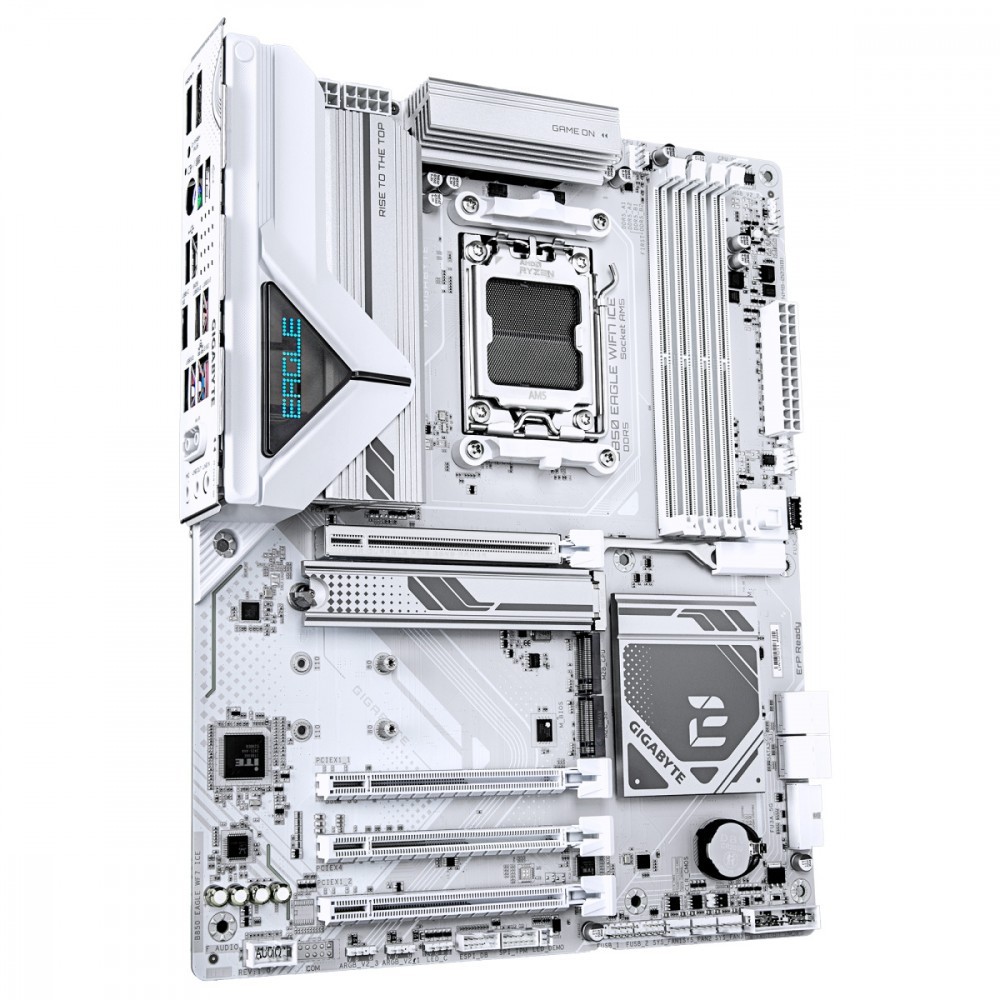

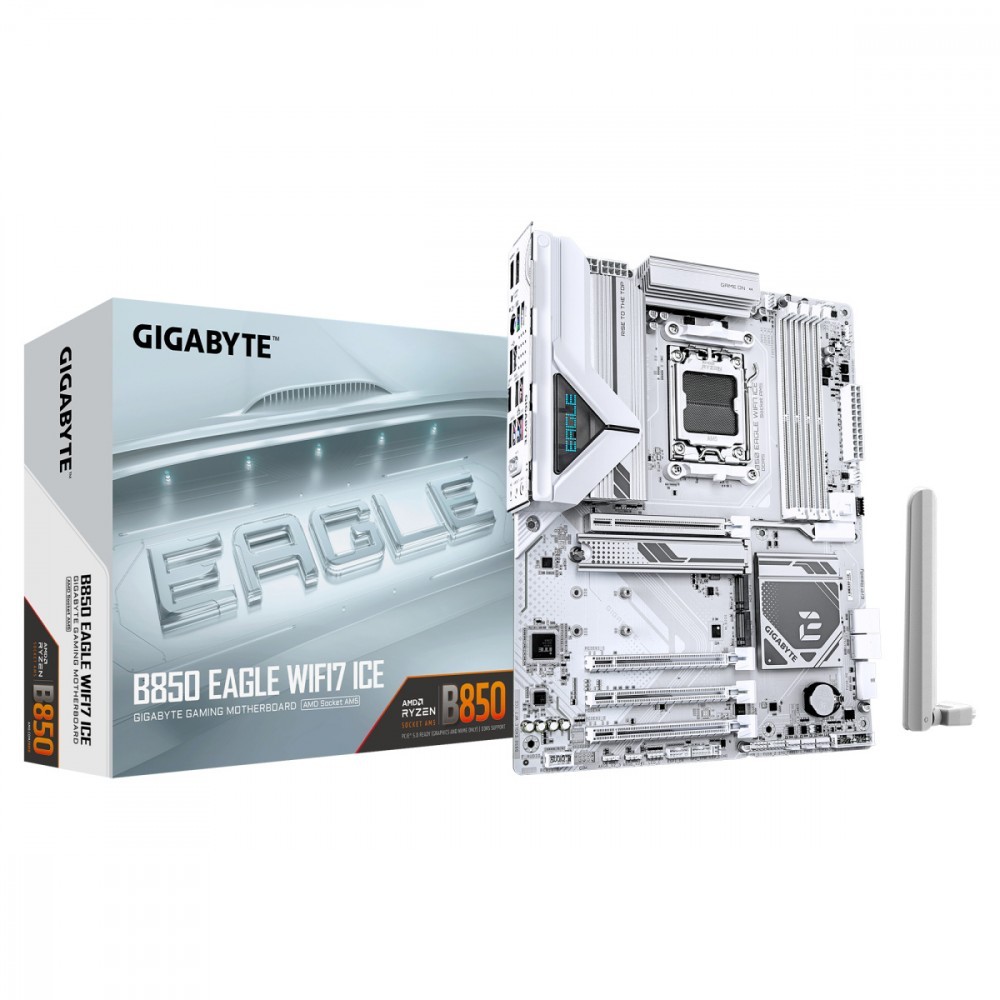

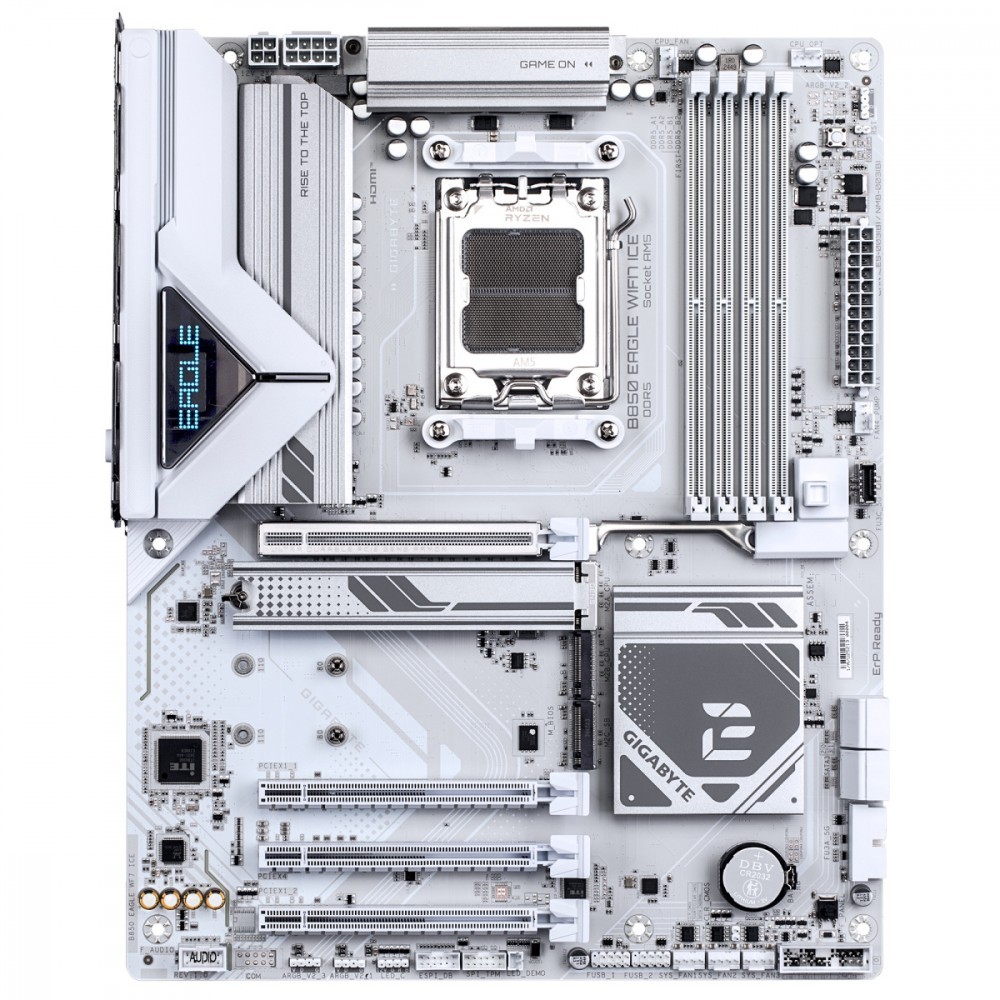

Gigabyte Płyta główna B850 EAGLE WF7 ICE AM5 4DDR5 ATX

• X3D Turbo Mode : Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5 : Supports AMD Ryzen(TM) 9000 / 8000 / 7000 Series Processors
• Digital 8+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : HDMI, Displayport
• PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

EAN: 4719331871239
Gwarancja: 36 miesięcy
Kod dostawcy: B850 EAGLE WF7 ICE
Model: B850 EAGLE WF7 ICE
Gniazdo procesora: Socket AM5
Rodzina procesora: AMD Ryzen 7, AMD Ryzen 9, AMD Ryzen 5
Zintegrowany procesor: Nie
Producent Chipsetu: AMD
Chipset: AMD B850
Rodzaj pamięci: SODIMM DDR5
Liczba gniazd DDR5: 4
Częstotliwość szyny pamięci: 7950 MHz, 7400 MHz, 5800 MHz, 7800 MHz, 8200 MHz, 7900 MHz, 5600 MHz, 6800 MHz, 6600 MHz, 7000 MHz, 8000 MHz, 7600 MHz, 6400 MHz, 5200 MHz, 6000 MHz, 4400 MHz, 4800 MHz, 7200 MHz, 6200 MHz
Maks. wielkość pamięci: 256 GB
Gniazda rozszerzeń: 1 x PCIe x 16, 3 x M.2, 1 x PCIe 5.0 x 16, 1 x PCIe 4.0 x 4, 1 x PCIe 4.0 x 8
Maksymalna ilość urządzeń SATA: 4
RAID: Tak
Szczegółowe dane o interfejsach dysków/napędów: Złącza rozszerzeń 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) Złącza SATA 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Grafika: Integrated Graphics Processor with AMD Radeon Graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Karta dźwiękowa: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Interfejs sieciowy: 1 x 10/100/1000/2500 Mbit/s, Bluetooth, Wi-Fi 802.11a/b/g/n/ac/ax/be, LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Realtek Wi-Fi 7 RTL8922AE 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard
Porty USB na tylnym panelu: 9
Porty USB do wyprowadzenia z płyty: 7
Liczba portów USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1: 6
Liczba portów USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2: 2
FireWire (IEEE 1394): Nie
Port / Złącze COM: Nie
Port / Złącze LPT: Nie

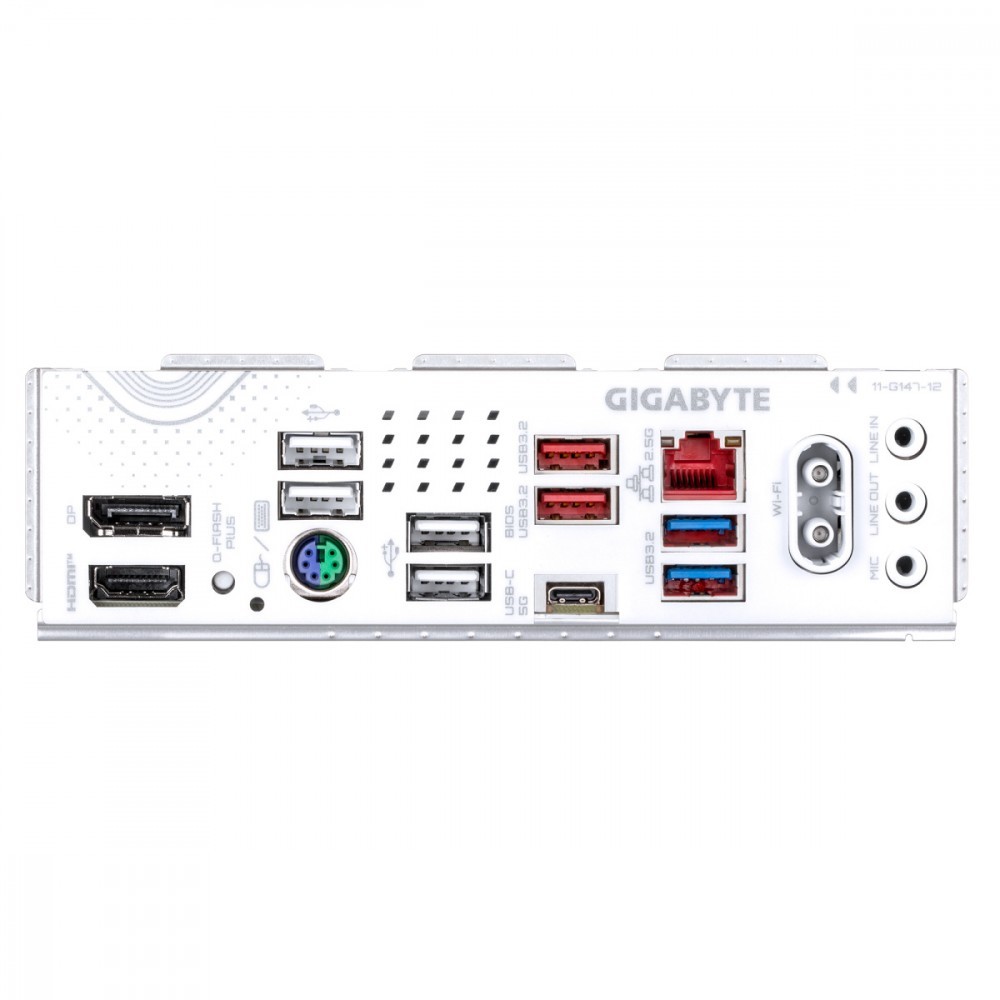

Złącza zewnętrzne: 2 x USB 3.2 Gen 2 Type-A, 1 x RJ-45, 1 x HDMI, 1 x MIC, 1 x Line Out, 1 x Line In, 1 x DisplayPort, 2 x SMA, 4 x USB 2.0, 1 x PS/2 Klawiatura/Mysz Combo, 1 x Przycisk Q-Flash Plus, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C
Złącza dostępne na płycie: 1 x Przedni panel audio, 1 x Przycisk reset, 1 x Zworka reset, 1 x USB 3.2 Gen 1 Type-A, 3 x M.2, 1 x USB 3.2 Gen 1 Type-C, 1 x 24pin ATX zasilanie, 1 x 4pin wentylator procesora, 1 x TPM, 1 x 8pin 12V zasilanie, 4 x SATA III 6Gb/s, 2 x USB 2.0/1.1, 1 x Zworka Clear CMOS, 1 x System panel, 3 x Adresowalna dioda LED, 1 x Taśma LED RGB, 3 x 4pin wentylator obudowy, 1 x 4pin 12V zasilanie, 1 x 4-pin wentylator chłodzenia cieczą, 1 x 4pin wentylator procesora chłodzenie cieczą
Funkcje specjalne: Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Format płyty: ATX
Wymiary: 30.5 x 24.4 cm
Obsługiwane systemy operacyjne: Windows 11
Oprogramowanie: Norton Internet Security (OEM version) LAN bandwidth management software
